 Logic Sample Program
 >Logitouch Editor >Register-combining process

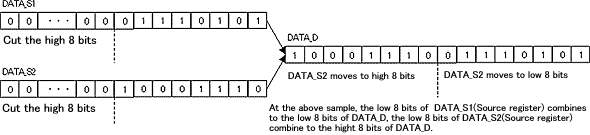

The low 8 bits of the source register,DATA_S1 and the low 8 bits of the other source register,DATA_S2 are combined and stored in one register called DATA_D.


When different data are outputted to a display device for internal operation, or when data are combined in one register for tracking data, this is used. And as an application of this circuit, changing the data variable,UNI_S1-2 before a combining process and times of Loop enables you to create a circuit that combines the source data to one register by 4 bits each.


Download a sample program file and detailed description.
