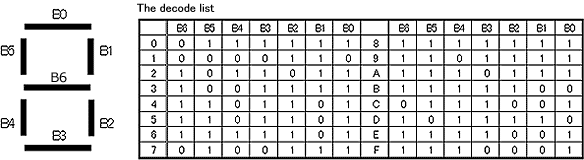

Logic Sample Program  >Logitouch Editor >7-segment decoder process The numeric values of the conversion source register,DATA_S are converted into the data, DATA_D that can be output to a 7-segment display that does not have a decode function. If a less expensive 7-segment display device without a decoder than one with a decoder is used, an output pattern that looks like characters of 0 to 9 (0 to F in hexadecimal) for external output 7 points will be created. Download a sample program file and detailed description.
