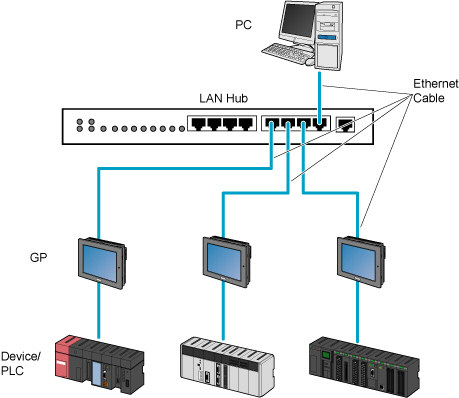

FAQ  How to Connect PC and GP? Connect Ethernet cables to the PC and the GPs separately, and then connect them together using a LAN Hub as ahown below. ＜Example：In case of connecting three GPs and one PC＞ 1. Connect one end of the Ethernet cable to the Ethernet port of the PC. MEMO ・ The Ethernet port is provided at a different position depending on the PC. ・ Pull off the Ethernet cable while pushing the tab of the connector. 2. Connect one end of another Ethernet cable to the Ethernet I/F of the GP. ＜Example：In case of GP3000series＞ MEMO ・ The Ethernet I/F is provided at a different position depending on the GP. Refer to the operation manual for more details. 3. Connect the other ends of the Ethernet cables connected to the PC and the GPs to the ports of LAN Hub.
