 FAQ

I want the backlight to turn off automatically when the display of the FP is not touched for a certain period of time.

Applicable Models
FP3000 series

Please refer to the following procedure.

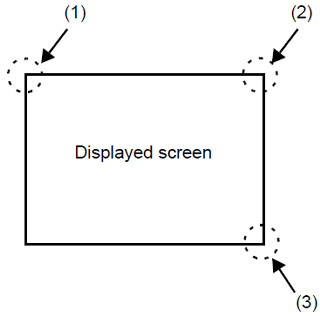

1. Under normal conditions, touch the three corners of the FP display in the order of [1], [2] and [3] shown below within 5 seconds to open the OSD menu.


2.

Touch the icon of "System Settings" in the OSD menu.


3. In the "Auto off Disp", select 1min, 3min, 5min, or 10min to have the backlight automatically turn off. For example, when "10min" is selected, the backlight automatically turns off if the display is not touched for 10 minutes. The default is "OFF".

4. Touch the "SAVE" key to close the OSD menu.
