| How do I set S-No. of the main unit. |
|
|
|
・
|

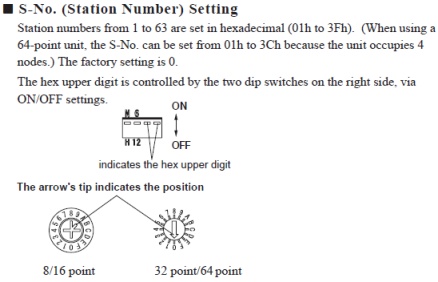

S-No. are set by using 2 dip switches from the right of 4 and a rotary switch on the main unit.
You can set S-No. "32 (20h)" when the second dip switch from the right is ON, or "0" when the switch is OFF. In the same way, you can set S-No. "16 (10h)" when the first dip switch from the right is ON, or "0" when it is OFF. Also you can set "0 to15 (0h to Fh)" with the rotary switch. The total number of the three switches will be S-No. of the unit.
|
|
|
*
|
The dip switch is ON when it is on the top of the unit, and OFF when it is at the bottom. |
|
|
|
|
| MEMO |
|
e.g)
|
In case to set 17 on S-No of the unit |
|
| Turn the first dip switch from the right "ON(=16)" and set the rotary switch to "1". S-No will be "17 (=16+1)" |
|
|
|
S-NoSetting
|
Dip Switches
|
Rotary Switch
|
|
The second from the right
|
The first from the right
|
|
S-No.17
(11h)
|
OFF(0)
|
ON(1)
|
1
|
|
|
|
|
|
|
|
|
