FAQ

How can I confirm PLC type (Connetion Device type) and to connect to it?

How to confirm with GP

You can confirm the PLC Type which is set at present with [Offline Mode] of GP.

Please refer Device Connection Manual (devided into makers) for the details of PLC type

How to switch to [Offline]

How to switch after power on

Please touch the upper left of the screen within 10 seconds after power is on.

How to switch during operation

Please touch three parts 1-2-3 of the screen as below at the same time.

Please select [Offline] after Menu Bar displays.

Please display Main Menu

PLC type which is set at present is displayed below Main Menu ( the lower left of the Screen)

Ex:

Mitsubishi AnA(LINK）: MELSEC AnA V x.x
Mitsubishi AnN(CPU）: MELSEC AnN_CPU V x.xx

Please resetup PLC type on the Software.

How to confirm and resetup with the Software

Please check the lower left of [Project Manager]

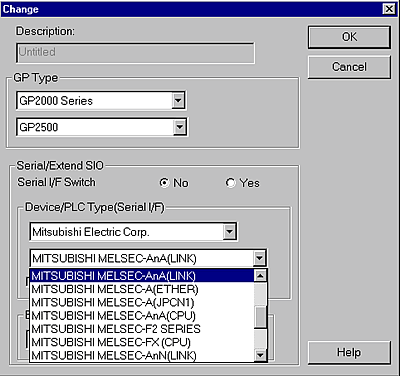

Please double click the icon

to change the settings

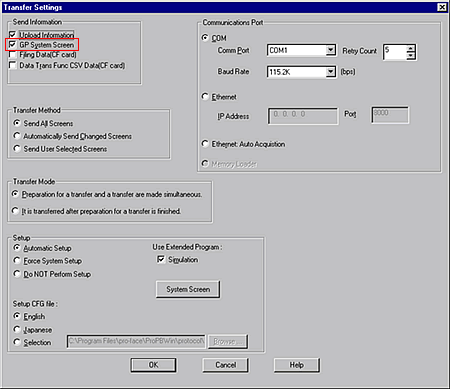

Please select [Setups] from [Transfer] and Transfer Settings with GP Systems.

Please make sure that you have checked on [GP System Screen] before transfer.

If you do not check it on, the System Settings that you have set with the Software will not be reflected on GP.
