 FAQ
 How can I change the GP type?

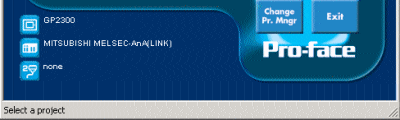

To change the GP type that you have setup on the project file, please select the icon [Change GP Type] on Project Manager of GP-PRO/PB III C-Package.



I can't find the GP type to change !

There is a possibility that the Screen Creation Software that you have currently might not be available for the GP. Please check the Version of the Screen Creation Software that you have supports the GP that you would like to use.

-> List of the screen creation software of GP2000 series / ST series / Factory Gateway
-> List of the screen creation software of GP*77R/77 series
-> List of the screen creation software of GP*70 series
-> List of the screen creation softwareG P*10~GP*50series

Is it OK to change any GP types?

Depending on the types, the functions that are supporting types are different.Please check the functions and the methods that each GP supports before you change the type.
Type Change Sample
Before Change
After Change
Result
GP2600
GP2400
Please be acknowledged the display size differs from the former version. There is a possibility that the GP is not available for some optional parts such as VM Units.
GP2500
GP577R
There are the some functions which are not available as GP577R is an old model.
GP577R
GP2501
Display size is the same as the former version.

There is no problem to use this version as the change to the upper grade type. However, please be careful that the optional parts such as expansion unit or printer cable do not match to some of 2000 series and 77R series.


In case that you change the GP type whose Display Size (Contrast) is differnt

In case that you change to the GP type whose display size is different, there will be a possibility that some parts can not be displayed or some blanks are displayed.

In case that you change to the GP type whose display area is different, it is neccesory to reduce or enlarge the Base Screen one by one refering the below order.

Please refer For using the screen data of GP with large display size by small GP for the details
