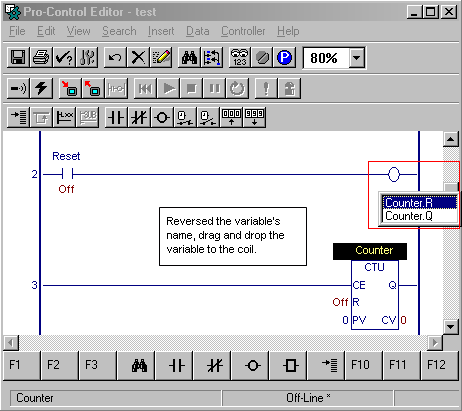

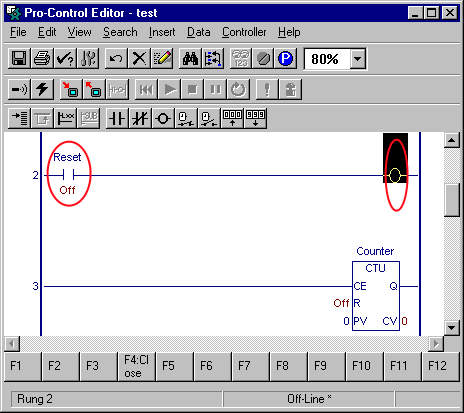

FAQ  How do I reset the Counter Instruction? Create a Counter that passes power when it has received the preset numbers of the Pulse Input. 1. Create a Counter. To create a Reset Switch, place a Normally Open, and a Coil ahead of it.         2.Drag the variable name of the counter, and bring it to on top of the Coil. And then, selection appears as shown on the picture below, so select “Counter’s variable name.R” and allocate it on the Coil. The preset value of the counter will be reset when this bit turns ON.       3.Place a Keypad Display to input the preset value of the counter on the screen.
