26.13.2 Transfer - Transferring Recipes (Filing Data) Using Touch (Manual Transfer)

The following shows the process for manual transfer from backup memory (SRAM) to a device/PLC. (When multiple folders are not used.)

1. Turn ON D10 bit 0. All the filing data recipes stored in the screen area are transferred to backup memory (SRAM).



   • When saving the recipes to a CF Card (or SD card), turn ON bits 0 and 8. When saving the recipes to the USB storage device, turn ON bits 0 and 9.

2. When the transfer to backup memory (SRAM) has been completed successfully, turn ON the Write Completed Bit (M100). After confirming the bit is ON, turn OFF D10 bit 0 and M100.

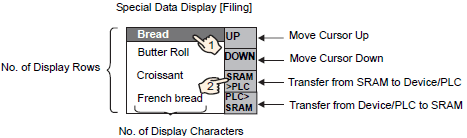

3. In the Special Data Display [Filing] on the screen of the display unit, the item names of registered blocks in the files specified in the backup memory (SRAM) (File#0) are displayed in a list.
   Touch the recipe you want to transfer. (You can select multiple files from the displayed list.)

4. Touch the backup memory (SRAM) to the device/PLC transfer switch.
   The selected recipes transfer to the device/PLC.
