If a numeric value out of the setting range is input, an error will occur and the 6706 error code is set to #L_CalcErrCode. For checking error details, refer to the #L_CalcErrCode.
#L_CalcZero turns on when the value of D1 is 00:00:00.
Program Example
JRD
Stores the current time in the time variable.

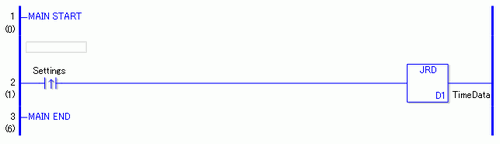

When the positive transition instruction turns ON, a JRD instruction will execute. When the JRD instruction is executed, the current time is stored in D1.
JRDP

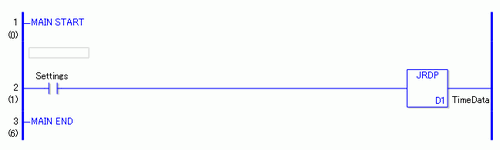

When the normally open instruction turns ON, the JRDP instruction will execute. When the JRDP instruction is executed, the current time is stored in D1.
