When the execution result is 0, #L_CalcZero turns on.
When the execution results in an error, the error code is stored in #L_CalcErrCode.
When checking the result using system variables, make sure the check takes place after the instruction has been executed. When checking the state after multiple instructions have been executed, system variables will store the result only of the last processed instruction.
Program Example
COT

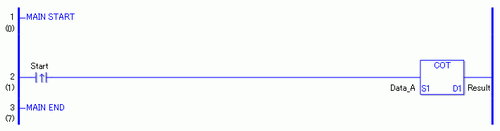

The COT instruction is executed when the positive transition instruction turns ON. The COT instruction calculates the cotangent of Data_A and stores the result in D1.
When using a normally open instruction, the COT instruction is always executed as long as the normally open instruction bit is ON.
COTP
COTP and COT instructions differ in when they run. In COTP instructions, even when using a normally open instruction, the COTP instruction executes only when it detects the upward transition. Therefore, the COTP instruction is executed only for one scan, even when the normally open instruction bit remains ON.
