T.2.9.6 In the Pass-Through Configuration Tool, is the check box for the target COM port number selected?

Cause

The check box for the target COM port number may not be selected.

Solution

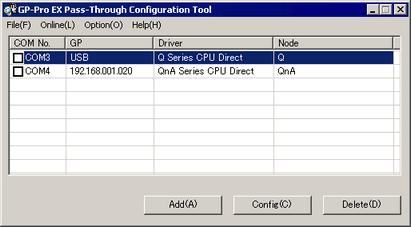

Start the Pass-Through Configuration Tool and select the desired COM port number from the following dialog box. Then, re-start the monitor from the ladder software.

For details about the ladder software, refer to the manual of the connected device.
