The User ID and Password Input Window, the Password Input Window, and the User ID Input Window cannot be edited.
Passwords and User IDs cannot be entered from a Device/PLC.
Passwords and User IDs cannot be entered from a Bar Code Reader.
When the Password Input Window (the User ID Input Window) or the User ID and Password Input Window is displayed, if the Trigger Bit of the Local Window or the Global Window is turned ON, close the Password Input Window (the User ID Input Window) or the User ID and Password Input Window and then display.
Do not set [Continuous Read] for Window Parts to call the Window Screens setting Security Level. The Password Input Window or the User ID and Password Input Window is not shown on the display unit even if you set it, and the security feature does not run.
When setting up a screen with a security level with no password, the screen cannot display until you input a Password or a combination User ID/Password with a security level that is greater than that of the screen.
If there is no Password or combination User ID/Password with a security level higher than the screen, you cannot change screens.

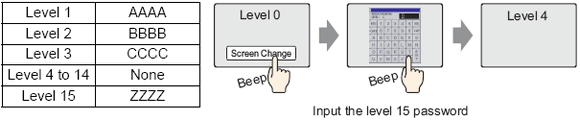

Example 1, when passwords are set as follows and the screen changes to a level 4 screen
As there is a password with a security level greater than 4, screen change is possible

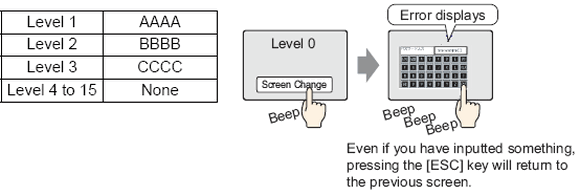

Example 2, when passwords are set as follows and the screen changes to a level 4 screen
As the password security level is less than 4, screen change is not possible

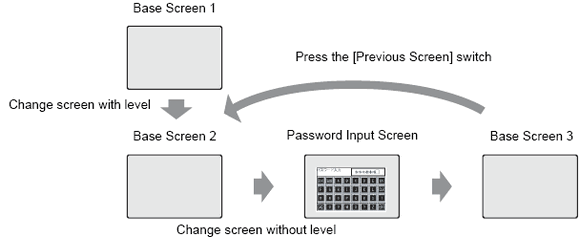

After changing to a screen with a security level, [Previous Screen] switch operates as follows when screens are set up in the same hierarchy.
In Level Mode (Do Not Add a User ID), an error does not occur even though the Password is undefined. However, an error occurs when you set the same Password.
In User ID Mode (Add a User ID), a Password has to be set. The same Password can be set. However, when the User ID is undefined or the User ID is duplicated, an error occurs and settings are not completed.
When a security level is set on the initial screen, which displays at startup after turning on display unit, the initial screen is displayed followed by the Password Input Window or the user ID and Password Input Window. As a result, the initial screen is running while the Password Input Window or the user ID and Password Input Window is open. The Password Input Window displayed here cannot close with the [ESC] key, and the user ID and Password Input Window cannot close with the [Cancel] key. The correct Password or combination user ID and Password must be entered.
