The operation log is recorded and saved as a CSV file on external storage.
File Name
File names are saved in the following format.
OLHHMMSS.csv
OL: file name prefix for an operation log
HH: Hours
MM: Minutes
SS: Seconds
For example, an operation log saved at 17:03:08 is named OL170308.csv
File Folder

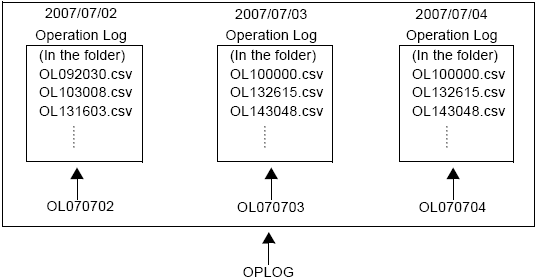

Files are automatically saved in CSV format in the folder created. The "OPLOG" folder is created in external storage designated as the save destination, and a folder is created in "OPLOG" daily.
For example, the folder to save and the file name for the operation log saved at 13:16:3 on July 2, 2007
\\OPLOG\OL070702\OL131603.csv
Do not save any files other than operation logs in the "OPLOG" folder.
You can view operation log files on the display unit using the CSV Display.
26.7 Displaying/Editing CSV data on the Screen
