In the Basic Settings mode, a fixed preset format (such as the following) can be used to create a simple format.
Data columns and Time columns are displayed sequentially line by line, then data columns for all of the Addresses set after the Date/Time are displayed.
The 1st row displays the Item Name row. The date and time columns display "Date" and "Time" respectively, and the Data column item name displays an address.
When the Total row is displayed, it appears in the row after the data display rows. "Total" displays for the item name.
If in the [Mode] tab's Extended area the [Overwrite old data after finishing the specified cycles] check box is selected, only one data row will be displayed. If it is not checked, the data rows will equal the designated Cycles.
The data, except Item Name in a Data column, Time column, and Data column, are displayed in the center of each cell on the Sampling Data Display.
(For example, Display Format Settings: Number of Item Name Characters = 8, Number of Display Digits = 4, Align Right)

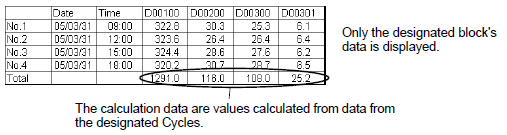

When [Overwrite old data when designated block count finishes] is set
Display Format Settings
(For example, Total row = checked, Number of Item Name Characters = 8)
Sampling Data Display
(For example, Display Rows = 6, Display Columns = 7)

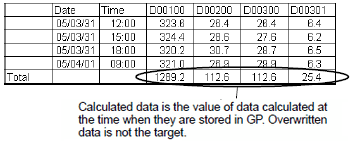

When [Overwrite old data after finishing the specified cycles] is cleared
Display Format Settings
(For example, Total row = checked, Number of Item Name Characters = 8)
Sampling Data Display
(For example, Display Rows = 6, Display Columns = 7)
