Display units with a matrix touch panel do not require calibration.
-
For details about the setting screen, refer to the setting guide.
M.16.6.4 Maintenance Menu - Calibrate Touch Panel
Correct an analog touch panel. (Setup calibration)
Display units with a matrix touch panel do not require calibration.
For details about the setting screen, refer to the setting guide.
M.16.6.4 Maintenance Menu - Calibrate Touch Panel
Go to offline mode and touch [Maintenance Menu] on the item changeover switch.
[Maintenance Menu] screen opens. Touch [Calibrate Touch Panel].

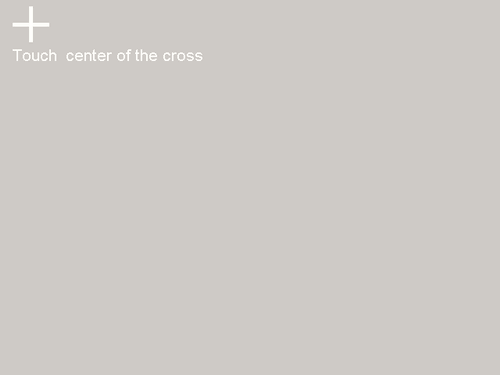

[Calibrate Touch Panel] screen opens. Touch the crosshatch when it appears. Repeat until the crosshatch disappears.
When the process is successful, the [Maintenance Menu] screen appears.
