This section describes how to allocate the input terminals X0 to X7 and the output terminals Y0 to Y3 in the LT3000 Series. As shown below, divide these I/O terminals into four groups based on one channel (CH) consisting of two input terminals and one output terminal. Select the combination for each channel from those provided by GP-Pro EX.
In the LT4000 Series, input and output terminals are determined based on which channels you are using, and which functions you are setting on the channel.
[GP-Pro EX I/O Driver Setting Screen]
Select [I/O Driver] in System Settings to display the following screen.

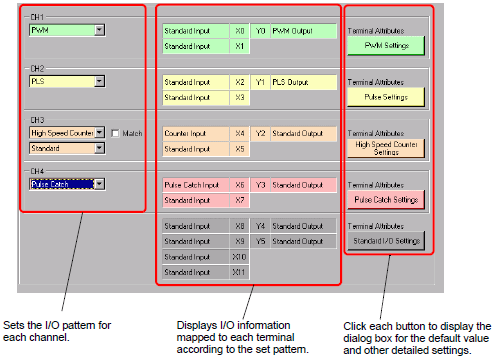

For example, for the LT-3200 Series

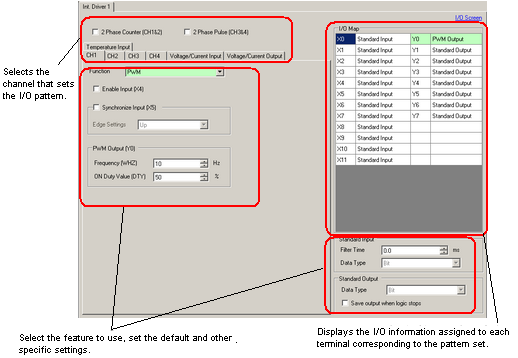

For example, for the LT4000 Series
