32.23.2.1 Calculating the Number of Steps When Setting Operands - PLSX

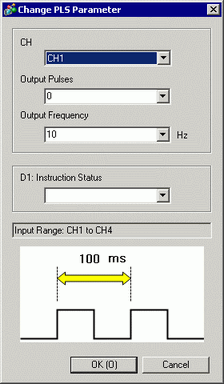

Double-click the PLSX instruction to display the following dialog box. In the following dialog box, specify each of the settings.

For details on the special I/O of the LT, refer to the following.
31.5 Controlling External I/O with LT

Setting	Operand	Description	Setting Range
CH	S1	Specify the channel number to map the pulse output.	CH1 - CH4
Output Pulse Count	S2	Specify the number of pulse outputs for the parameter. The value specified here is stored in #L_PLS*_NUM.	Numeric Value 0 to 2147483647 Variable Integer variable only
Output frequency	S3	Specify the Output Frequency (Hz). The value specified here is stored in #L_PLS*_LHZ.	Numeric Value 10 to 65000 Variable Integer variable only
D1: Instruction Status	D1	Specify the integer variable for storing the status of instruction execution.	Integer variable only
