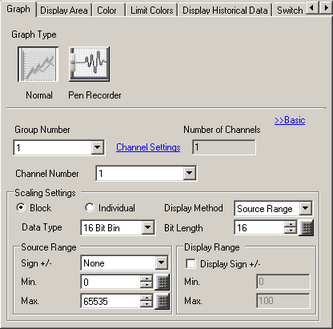

Configure scaling settings for each channel.
Block/Individual
Select Block to define the scaling settings, such as [Data Type] and [Sign +/-] as a single group. Select Individual to define settings individually for each channel.
Display Method
Select the setting method for the graph display range from [Acquisition Range] and [Display Range].
When [Display Range] is selected, you cannot select the [Fill Below Line] check box in the [Color] tab's Extended settings.
When [Display Range] is selected, the [Alarm] tab is hidden.
When [Specify Range] is selected, the [Auxiliary Line] tab is hidden.
Bit Length
You can define the bit length, from 1 to 16, when the [Display Method] is [Source Range] and the [Data Type] is [16 Bit Bin].
When [Bit Length] = 1 and the bit value becomes "1", the graph will display the value "1" when [Sign +/-] = [None]. When [Sign +/-] =[2's Complement] or [MSB Sign], graph display value will always be "0".
Constant/Address
When [Display Method] is set to [Show Scale], select whether to define the upper and lower limits with numerical values or address values. Data exceeding the display range will not display on the graph.
Constant
The setting range differs, depending on the [Data Type] and [Sign +/-] settings.
|
Data Type |
Lower Limit |
Upper Limit |
|
16 Bit Bin Sign Check Disabled |
0 to 65534 |
0 to 65535 |
|
32 Bit Bin Sign Check Enabled |
-32768 to 32766 |
-32767 to 32767 |
|
16 Bit Bin Sign Check Disabled |
0 to 4294967294 |
1 to 4294967295 |
|
32 Bit Bin Sign Check Enabled |
-2147483648 to 2147483646 |
-2147483647 to 2147483647 |
Address
Set the Word Address.
The graph display is updated when the value of address is changed.
