For details on how to draw parts, and defining the address, shape, and color, refer to the following.
8.7.1 Editing Parts
Please refer to the Settings Guide for details.
14.11.1 Numeric Display
For details on how to draw parts, and defining the address, shape, and color, refer to the following.
8.7.1 Editing Parts
From the [Parts (P)] menu, point to [Data Display (D)] and select [Numeric Display (N)], or click the
icon, and place it on the screen.

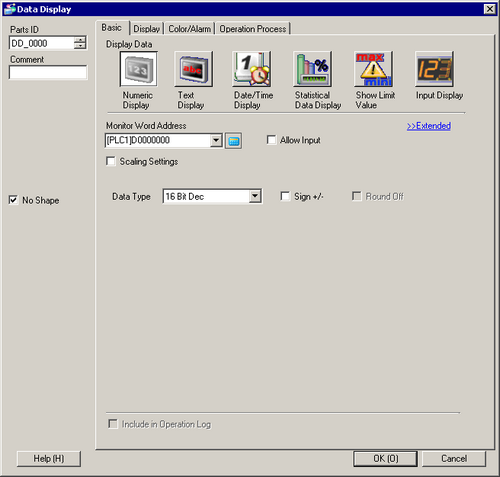

Double-click the placed Data Display. The Data Display dialog box appears.
Select a part shape as necessary. Deselect [No Shape], and select a shape from [Select Shape].
In [Monitor Word Address], set up the address
In the [Data Type] drop-down list, select the type of data to display (for example, "16 Bit Dec").

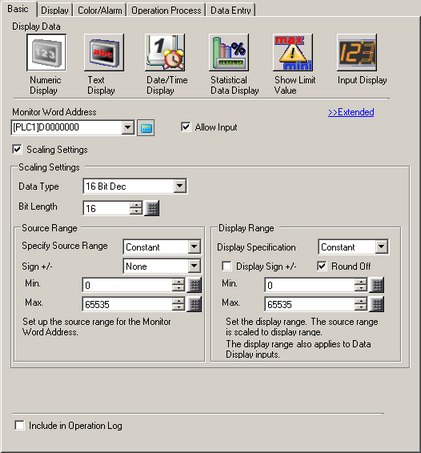

Select the [Allow Input] check box. The [Data Entry] tab is displayed.
This cannot be set when only numeric data displays.

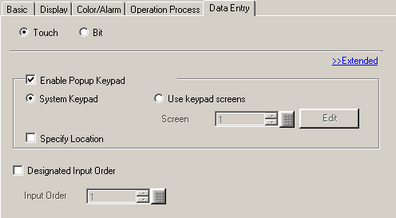

Click the [Data Entry] tab and select the [Enable Popup Keypad] check box.
Set the font and/or color in the [Color/Alarm] and [Display] tabs as necessary and click [OK].
