40.4 监控寄存器地址的值(寄存器监控)

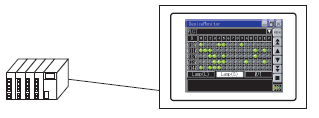

您可以监控人机界面画面上指定的控制器/PLC地址。或者从人机界面画面上更改定义的地址值。这对调试非常有用。

制造商	控制器/PLC名称
Mitsubishi Electric Corporation	A Series CPU Direct
	A Series Ethernet
	A Series Calculator Link
	Q series CPU Direct
	Q/QnA Series Ethernet
	Q/QnA Serial Communication
	QnA Series CPU Direct
	FREQROL Inverter
	Q series QnU CPU Ethernet
	FX Series Ethernet
	FX Series CPU Direct
	FX Series Computer Link
	QUTE Series CPU Direct
Omron Corporation	C/CV Series HOST Link
	CS/CJ Series HOST Link
	CS/CJ Series Ethernet
	CS/CJ/NJ Series EtherNet/IP^*2
	Adjuster CompoWay/F
PROFIBUS International	PROFIBUS DP Slave
Siemens AG	SIMATIC S7 MPI Direct
	SIMATIC S7 3964(R)/RK512
	SIMATIC S7 Ethernet
	SIMATIC S5 CPU Direct
	SIMATIC S5 3964(R)
Rockwell Automation, Inc.	DF1 ^*1
	EtherNet/IP（不包括 ControlLogix/CompactLogix Series Native）^1 ^2
	DH-485^*1
Yaskawa Electric Corporation	MEMOBUS SIO
	MEMOBUS Ethernet
	MP Series SIO (Extended)
	MP Series Ethernet (Extended)
	Inverter SIO
Yokogawa Electric Corporation	PC link SIO
Yokogawa Electric Corporation	PC link Ethernet
JTEKT Corporation	TOYOPUC CMP-LINK SIO
JTEKT Corporation	TOYOPUC CMP-LINK Ethernet
KEYENCE Corporation	KV-700/1000/3000/5000 CPU Direct
	KV-700/1000/3000/5000 Ethernet
	QnA Series CPU Direct
	KZ-10_80R/T Series CPU Direct
Schneider Electric SA	MODBUS SIO Master
	MODBUS TCP Master
	Uni-Telway
	MODBUS Slave
Panasonic Electric Works Co., Ltd.	FP Series PC Link SIO
Fuji Electric FA Components & Systems Co., Ltd.	MICREX-F Series SIO
	MICREX-SX Series SIO^1 ^2
	MICREX-SX Series Ethernet
	Controller MODBUS SIO
	Inverter SIO
Hitachi Industrial Equipment Systems Co., Ltd.	H Series SIO^*1
	H Series Ethernet^*1
	Inverter Modbus RTU
	Inverter ASCII SIO
Sharp MS Corporation	JW Series PC Link SIO
Sharp MS Corporation	JW Series Computer Link Ethernet
RKC Instrument Inc.	Controller MODBUS SIO
RKC Instrument Inc.	Temperature controller
Yamatake Corporation	Digital Controller SIO
	MODBUS TCP Master
	MODBUS SIO Master
GE Intelligent Platforms	Series90 Ethernet
	Series 90-30/70 SNP
	Series 90-30/70 SNP-X
Mitsubishi Heavy Industries, Ltd.	DIASYS Netmation MODBUS TCP
Mitsubishi Heavy Industries, Ltd.	MHI STEP3 Ethernet
LS Industrial Systems Co., Ltd.	MASTER-K Series Cnet
	XGT Series FEnet
	XGT Series Cnet
Saia-Burgess Controls Ltd.	Saia S-Bus SIO
Meidensha Corporation., Ltd.	UNISEQUE Series Ethernet
FANUC Ltd.	Power Mate Series
ODVA	DeviceNet Slave
Hitachi, Ltd.	S10V Series Ethernet
Hitachi, Ltd.	S10 series SIO
Shinko Technos Co., Ltd.	Controller SIO
Toshiba Machine Co., Ltd.	TC Series (TCmini/TC200)
Toshiba Corporation	Computer Link SIO
Toshiba Corporation	Computer Link Ethernet
Koyo Electronics Industries Co., Ltd.	KOSTAC/DL Series CCM SIO
Koyo Electronics Industries Co., Ltd.	KOSTAC/DL Series MODBUS TCP
CC-Link Partner Association	CC-Link Intelligent Device
IAI Corporation	ROBO Cylinder MODBUS SIO
IAI Corporation	X-SEL Controller
FATEK AUTOMATION Corporation	FB Series SIO
CHINO Corporation	Controller MODBUS SIO
Modbus-IDA	General MODBUS RTU SIO Master
Modbus-IDA	General MODBUS TCP Master
Hyundai Heavy Industries, Ltd.	Hi4 Robot
Digital Electronics Corporation	Memory Link
	No Device/PLC (LT Series)
	General Ethernet
	General SIO
Sanmei Electronics Co., Ltd.	Si/CutyAxis series SIO
CAN in Automation	CANopen Slave
Control Technology Corporation	CTC Binary Protocol

^{^*1 使用寄存器监控的块监控功能显示范围外的地址时，范围内的地址也显示为 "*"。请勿定义范围外的地址。}

如果控制器/PLC支持以下数据格式，则可以监控已注册Tag的寄存器。
BOOL, BYTE, WORD, DWORD, SINT, USINT, INT, UINT, DINT, UDINT, REAL, TIME, DATE, DT, TOD
