The log file is saved in the destination defined in the [Options] dialog box.
For more details about the [Options] dialog box, see the following.
4.11 [Options] Dialog Box

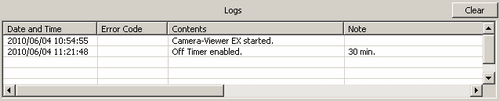

Save a history or log of Camera-Viewer EX operations. The log saves the [Date andTime], [Error Code], [Contents], and [Note].
The log file is saved in the destination defined in the [Options] dialog box.
For more details about the [Options] dialog box, see the following.4.11 [Options] Dialog Box
Date and Time
Displays the time when Camera-Viewer EX operations occurred, such as when the display unit connection started or when the connection ended.
Error Code
If an error occurs while viewing or recording live video images, or during video playback, the error code is recorded in the log.
Contents
Displays Camera-Viewer EX operation details. If an error occurs, the description of the error is output.
Note
Displays information such as display unit IP addresses or video file names.
Clear
Deletes all data in the log.
