Transferring Project
You can transfer (PC to Display
Unit) the project files to the display unit through the USB Cable.
The following USB cables are supported:
Important: Instructions
when transferring project files for the first time
When transferring the project from screen editing software to the
SP5000 Series Open Box for the first time, update the system file
in SP5000 Series Open Box.
To update the system file:
Run
the MiniUsbDownloadManager.exe
on the folder (C:\Pro-face).
Confirm
[Activate USB download for BLUE] is selected and click [OK].
- 1.Before Transferring Project
- 2.Transferring Project

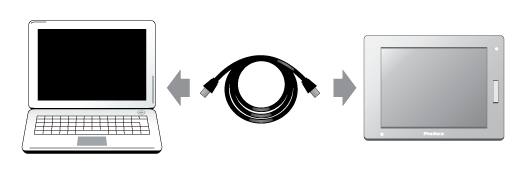

Connect the PC and the display unit using USB Cable.
Check
if the configured USB ports are available in the display
unit.
When
using an optional USB data transfer cable (ZC9USCBMB1)
or a commercially-available USB cable (Type A mini B),
connect the large plug to the PC and the small plug to
the display unit.
You
cannot transfer to multiple display unit at the same time
from a PC.
Do not connect multiple USB cables
to the PC for the following:
Connecting
2 or more ZC9USCBMB1 cables, or 2 or more commercially
available (Type A mini B) cables.
Connecting
both ZC9USCBMB1 and commercially available (Type A
mini B) cables.
Important:
Do not turn OFF
the PC or the display unit, nor disconnect the transfer cable
during transfer (PC to Display Unit). This can cause an error
when the display unit is started.
